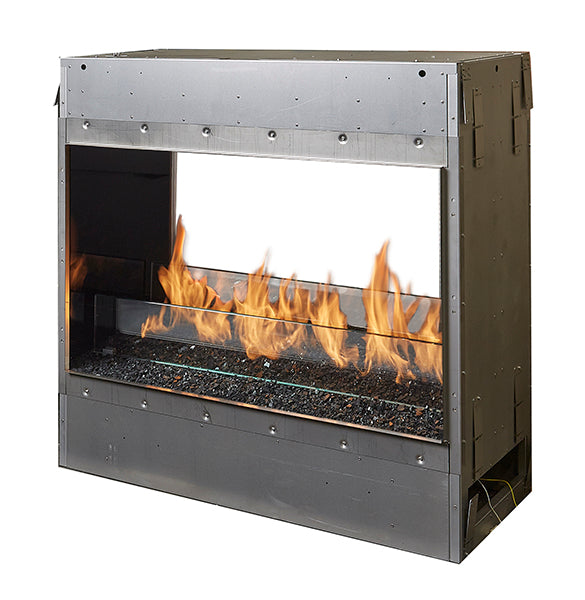

4024 Linear See-Thru Outdoor Gas Fireplace

4024 Linear See-Thru Outdoor Gas Fireplace

SKU: 94900296

Authorized Dealer
$4,760.00
$4,760.00
Sale Sold out
Shipping calculated at checkout.
  • Need assistance? Talk to an Expert! Call Now 1-800-654-1177 Or Chat With Us!
Add To Wishlist
View full details

With its engaging 36″ ribbon of flame, reflective black glass interior, and large variety of decorative interior medias, you are sure to elevate your outdoor space into an unforgettable experience. Featuring all-weather heavy-duty stainless-steel construction with premium materials and 24V AC Hot Shot™ Electronic Ignition, you’ll be enjoying the 4024 Outdoor Linear Gas Fireplace for years to come!

FEATURES

  • 36” – 65K BTU Stainless Steel burner
  • 3/8” Thick tempered glass wind screen 6” tall
  • Standard Black Glass Fire Backs
  • 16 Gauge Stainless Steel Construction
  • Viewing Area: (Taken from actual firebox opening)
    • See-Thru: 40” W x 24” T x 2 =1920 sq. in.
  • LP Conversion kit
  • Air Vent Kit
  • Dimensions:  42” W x 19 5/8” x 43 3/4” H

Features:

  • Electronic Ignition (switch turns fireplace on or off)
  • Tempered glass wind guard
  • Stainless Steel Construction
  • Automatic Gas Shutoff Valve for Safety

Installation Options:

  • For Outdoor Installation Only
  • For Fixed Gas Line Installations Only

Electrical Specifications:

  • Voltage: 24 VAC., 60 Hz, 1.6 Amps.

Appliance Weight:

40x24 Fireplaces

  • Single-Sided: 250 lbs (114 kg)
  • See-through: 215 lbs (98 kg)

60x24 Fireplaces

  • Single-Sided: 350 lbs (159 kg)
  • See-through: 300 lbs (136 kg)

Gas Specifications:

Gas Pressures:

NG

  • Manifold Pressure: 7" wc
  • Max. Inlet Pressure: 7" wc
  • Min. Inlet Pressure: 6" wc

LP

  • Manifold Pressure: 11" wc
  • Max. Inlet Pressure: 11" wc
  • Min. Inlet Pressure: 10" wc

Fireplace Gas Specifications:

40x24 Fireplace

NG

  • Input Rating (BTU/h): 65,000
  • Orifice Size (DMS): (1) - #29

LP

  • Input Rating (BTU/h): 65,000
  • Orifice Size (DMS): (1) - #41

64x24 Fireplace

NG

  • Input Rating (BTU/h): 120,000
  • Orifice Size (DMS): (2) - #30

LP

  • Input Rating (BTU/h): 120,000
  • Orifice Size (DMS): (2) - #43
