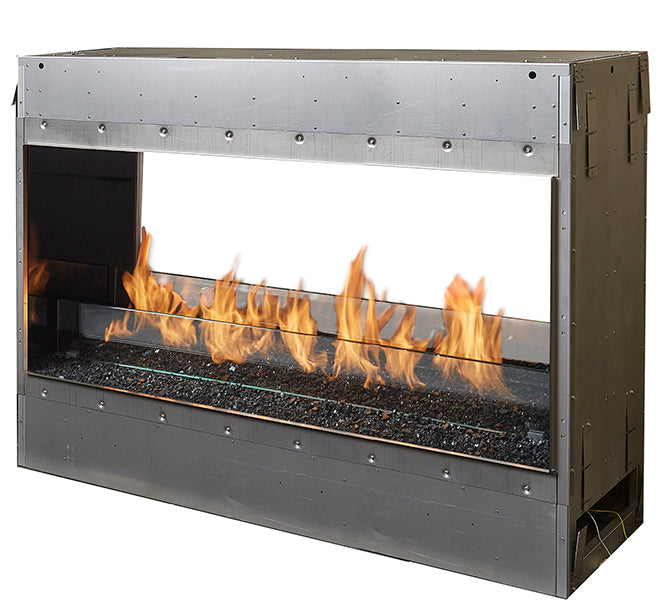

6424 Linear See-Thru Outdoor Gas Fireplace

6424 Linear See-Thru Outdoor Gas Fireplace

SKU: 94900306

Authorized Dealer
$6,188.00
$6,188.00
Sale Sold out
Shipping calculated at checkout.
  • Need assistance? Talk to an Expert! Call Now 1-800-654-1177 Or Chat With Us!
Add To Wishlist
View full details

With its impressive 60″ ribbon of flame, reflective black glass fire backs, and large variety of decorative interior medias you are sure to elevate your outdoor space into an unforgettable experience. Sit back and relax knowing it is constructed with premium materials like heavy duty stainless steel and features the most robust and reliable 24V AC Hot Shot™ electronic ignition system on the market, so you’ll be enjoying the 6424 Outdoor Linear Gas Fireplace for years to come.

FEATURES

  • 60” – 120K BTU Stainless Steel burner
  • 3/8” Thick tempered glass wind screen 6” tall
  • Standard Black Glass Fire Backs
  • 16 Gauge Stainless Steel Construction
  • Viewing Area: (Taken from actual firebox opening)
    • See-Thru: 64” W x 24” T x 2 = 3,036 sq. in.
  • LP Conversion kit
  • Air Vent kit
  • Dimensions:  66” W x 19 5/8” x 43 3/4” H

Features:

  • Electronic Ignition (switch turns fireplace on or off)
  • Tempered glass wind guard
  • Stainless Steel Construction
  • Automatic Gas Shutoff Valve for Safety

Installation Options:

  • For Outdoor Installation Only
  • For Fixed Gas Line Installations Only

Electrical Specifications:

  • Voltage: 24 VAC., 60 Hz, 1.6 Amps

Appliance Weight:

40x24 Fireplaces

  • Single-Sided: 250 lbs (114 kg)
  • See-through: 215 lbs (98 kg)

60x24 Fireplaces

  • Single-Sided: 350 lbs (159 kg)
  • See-through: 300 lbs (136 kg)

Gas Specifications:

Gas Pressures:

NG

  • Manifold Pressure: 7" wc
  • Max. Inlet Pressure: 7" wc
  • Min. Inlet Pressure: 6" wc

LP

  • Manifold Pressure: 11" wc
  • Max. Inlet Pressure: 11" wc
  • Min. Inlet Pressure: 10" wc

Fireplace Gas Specifications:

40x24 Fireplace

NG

  • Input Rating (BTU/h): 65,000
  • Orifice Size (DMS): (1) - #29

LP

  • Input Rating (BTU/h): 65,000
  • Orifice Size (DMS): (1) - #41

64x24 Fireplace

NG

  • Input Rating (BTU/h): 120,000
  • Orifice Size (DMS): (2) - #30

LP

  • Input Rating (BTU/h): 120,000
  • Orifice Size (DMS): (2) - #43
